Picking out your names.........dimension names that is

One of the most commonly overlooked features within Inventor is the ability to create realtionships between your part dimensions. However out of the box your dimenisons only get a generic name using some D value that increments when you place each one. Check out this video to see how you might be able to benefit from the naming.

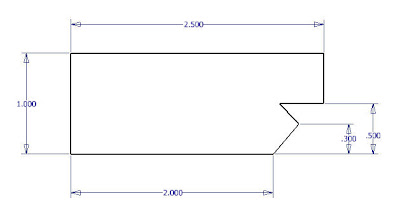

Before Naming....

After Naming.......

Enjoy Kevin with the INCAT CAD Geeks
